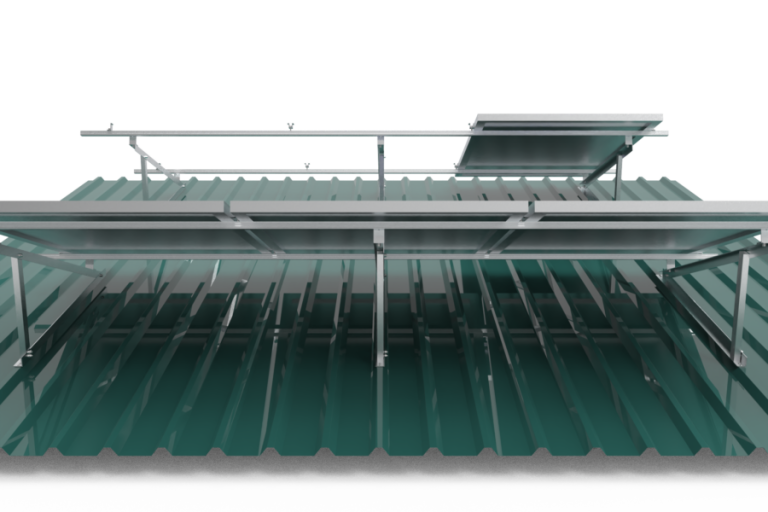

Tilted Mount System
Our Tilted Mounting Solution Addresses The Common Challenge Of Economic Viability On Roofs Not Originally Designed For Solar Systems. By Angling The Panels, Our System Captures More Sunlight Throughout The Day. Boosting Productivity And Maximizing Roi. Say Goodbye To Limitations And Embrace The Full Potential Of Solar Energy On Your Roof.
Highlights:
- Tilt it to your need-customizable angle
- Improved rear ventilation & easy cleaning
- Built to last durable & reliable
- Lightweight, Easy to handle & install
- Optimum load distribution on sheet
- Compatible with all PV module
General Guidelines:
- Suitable for sheet thickness > 0.4mm (Steel) > 0.5mm (Aluminium)
- System tilt angle ≥ 5° & ≤ 25°
- Designed wind speed limit - 80kmph

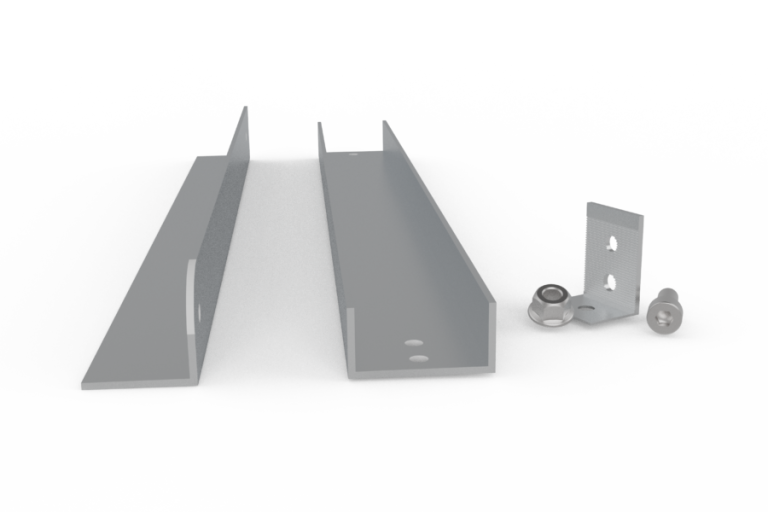

Mono Rail Dimensions:
L Profile: 38x38x2.5
C Profile: 50C25x2.5
Raw Material Used:
Aluminium 6063 T6
SS 304
Available in Anodized/Non-Anodized finishes

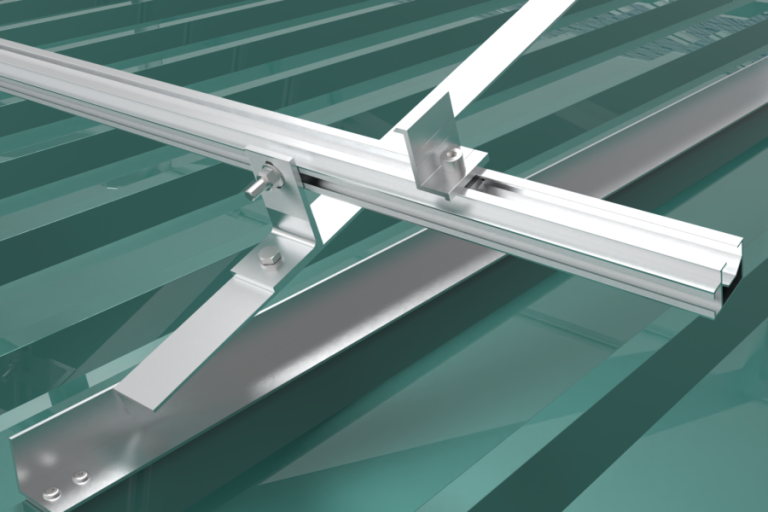

Aluminum Tilt Solar Mounting System
What is a Tilted Mount System for solar panels?
A Tilted Mount System is a solar panel mounting structure designed to fix panels at a specific angle (tilt) to maximize sunlight exposure throughout the day, especially on roofs that aren’t ideally angled for solar installations.
How does a tilted mount improve solar energy production?
Tilting solar panels optimizes their angle relative to the sun’s position, increasing absorption of solar radiation and improving overall energy output compared with flat installations.
What tilt angles are supported by this system?
The system typically allows a tilt angle between approximately 5° and 25°, depending on your installation needs and roof type.
Is the Tilted Mount System suitable for all roof types?
Yes — it’s designed to work on a variety of rooftop surfaces, especially where the roof slope isn’t optimal for solar exposure, helping capture more sunlight than standard flush-mount systems.
Can the Tilted Mount System be customized?
Yes — the mounting angle can be customized to suit your site’s geographic location and solar exposure needs, helping maximize ROI on solar installations.
Does this system support different types of PV modules?
The Tilted Mount System is compatible with most standard photovoltaic (PV) solar modules used in rooftop solar projects.
What materials are used in the Tilted Mount System?
High-strength aluminum (e.g., Aluminium 6063-T6) and stainless steel (SS304) components provide durability, corrosion resistance, and long-term reliability
What are the benefits of installing a Tilted Mount System?
Key benefits include improved energy production, better rear ventilation for panels, easier cleaning, enhanced load distribution, and optimized performance on roofs not originally designed for solar.
Is this mounting system easy to install and maintain?
Yes — the system is lightweight, easy to handle, and designed for simple installation and low maintenance compared with more complex tracking systems.
How does a tilted mount compare to a fixed flat mount?
Tilted mounts provide better solar exposure and energy yield than flat mounts by angling panels toward the sun’s path. Fixed flat mounts are simpler, but tilted systems offer improved performance, especially in locations with non-ideal roof slopes.
