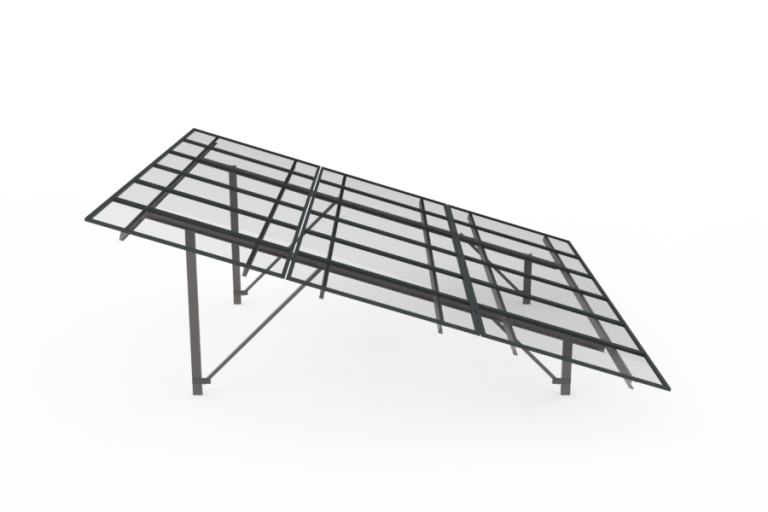

Double Post System
In The Quest For Clean, Sustainable Energy, Every Element Counts, And None More So Than The Foundation Of Your Solar Array. At Structura We’ve Developed The Double Post Mounting System, Designed To Provide An Answer To A Crucial Question: How Do You Ensure Your Solar Installation Stands The Test Of Time And Environmental Rigors? This System Is Your Key To Superior Stability, Particularly In Regions With High Wind Speed And Rain Loads. When Confronted With The Need For A Resilient Solar Mounting Solution That Accommodates Larger Panels And Challenging Conditions, Look No Further. The Structura Double Post Mounting System Offers The Promise Of Unwavering Performance, Enabling You To Maximize Your Solar Project’s Efficiency And Lifetime.
Doubling Down on Reliability
Technical Specifications
Material | |
|---|---|
| Foundation | Steel, Galvanized To G90 Or Up To G235 For Corrosive Environments |
| Structural Material | Steel for Rafter, Purlins, Column, Bracing with Zinc-Aluminium-Magnesium Alloy Coating or HDG / GP / POSMAC / Galvalume |
| Fixing Elements, Screws | SS304, Zinc-flake Coated Steel, Aluminium 6063 |
| Jie Clamps | Aluminium 6063 |
Design | |
|---|---|
| Foundation Options | Tailored Based On Soil Analysis: Cement Pier, Driven Pile, Anchor Bolts, Cement Ballast |
| Modular Design | Customizable to Project Requirements, Optimized for Efficient Installation |
| Supported Module Types | All Market-available Modules, Including Bifacial & Thin Films |
Module Attachment | |
|---|---|
| Module Type | Framed (standard), Bifacial (standard), Frameless (additional horizontal rail) |
| Attachment Method | Direct Module Bolt or Top Clamp |
Module Configuration | |
|---|---|
| Landscape Format | Up to 14 x 4 Modules |
| Portrait Format | Up to 14 x 2 Modules |
Wind Load & Terrain Tolerance |
|
|---|---|
| Wind Load Resistance | Tested to withstand wind speed up to 180 km/h |
| Terrain Slope Tolerance | East / West Inclination: Up to 15° | North / South Inclination: Up to 30° |
Structural Analysis | |
|---|---|
| Geotechnical Analysis | Site-specific for precise foundation design |
| Structural Analysis | Based On Indian Structural Codes And Standards (E.g., Is 800, Is 875 For Loads, Is 456 For Materials) And Additional Or Corresponding Country-specific Standards |
| Component Verification | Fem (Finite Element Method) Calculations For All Construction Components |
| Vibration Simulations | (Optional) Available For Wind Force Assessment |
On-Demand Services | |
|---|---|
| Foundation Services | Comprehensive Geotechnical Investigation, Pull-out Tests, Corrosion Testing, Etc. |
| Design & Engineering | Feasibility Studies, Site Layout Optimization, Detailed Structural Analysis, Etc. |
| Installation Services | Available Upon Request For Seamless Project Execution. |
Double Post Solar Panel System
What is a Double Post Solar Mounting System?
A Double Post Solar Mounting System is a robust ground-mounted support structure that uses two vertical posts to securely anchor solar panels, offering superior strength, load distribution, and environmental resilience.
How is a double post system different from a single post system?
Compared to a single post design, a double post system provides improved stability and load-bearing capacity, making it ideal for larger or heavier panels and for locations with high wind or rain loads.
Where is a Double Post System typically used?
This mounting system is usually used in ground-mounted solar installations for commercial, industrial, and utility-scale projects where structural strength and durability are critical.
What materials are used in the Double Post Solar System?
Double post systems are commonly made from galvanized steel or aluminum, offering excellent corrosion resistance and long-term performance under varied environmental conditions.
Can the Double Post System handle harsh weather conditions?
Yes — the dual-post design evenly distributes loads and enhances structural resistance to strong winds, heavy rain, and other challenging weather, ensuring long-term reliability.
What foundation options are available for a Double Post System?
Depending on site conditions and soil type, foundations may include concrete piers, driven piles, screw piles, or anchor bolts, tailored to ensure stability and performance.
Is the Double Post System suitable for large solar panels?
Yes — the design supports larger module configurations and can be customized to accommodate various panel sizes in both landscape and portrait orientation.
What are the benefits of using a Double Post Solar Mounting System?
Key advantages include enhanced stability, better onsite load distribution, longer lifespan, low maintenance, and suitability for difficult terrains or demanding environmental loads.
How does the Double Post System maximize solar project efficiency?
By securely anchoring panels and maintaining optimal tilt and positioning, it ensures reliable energy production and reduces downtime due to structural issues.
Can the Double Post System be customized for specific projects?
Yes — the modular design allows customization of post length, spacing, panel layout, and foundation type to match project specifications and site conditions.
