Cable Trays
Products Range
The different types of tray designs are described below:
MATERIALS: Pre-Galvanized, Hot-Dip Galvanized, Stainless Steel, and Aluminum.
MATERIAL THICKNESS: 1.0mm | 1.20 mm | 1.50 mm | 2.00 mm
Ladder (Cable Ladder)
Swaged rounded tubular (Aluminum or Steel) or welded c-channel (steel). A prefabricated metal structure consisting of two side rails connected by individual transverse embers or rungs. Cable Ladder Trays are the most common and the most economical types of trays. They also provide maximum ventilation for cabling. Swaged Rounded Tubular Welded C-Channel.

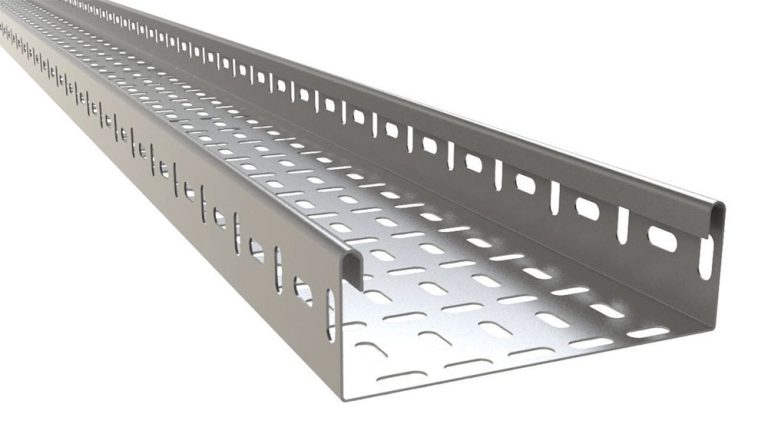

Perforated Cable Tray (Cable Trays)
A prefabricated metal structure consisting of a bottom with openings within the cable bearing surface. Solid bottom Cable Trays completely eliminate cable sagging and offer maximum protection for the cables.
Solid (Cable Trunking)
A prefabricated metal structure consisting of a one-piece solid bottom channel section not exceeding 6” (150mm) in width.
Cable Trays System
What are cable trays used for?
Cable trays are used to support and route electrical wires and cables in industrial, commercial, and residential buildings for organized power and data distribution.
What types of cable trays are available?
Common types include ladder cable trays, perforated cable trays, solid bottom trays, and wire mesh trays — each suited for different load and environment requirements.
What materials are cable trays made from?
Cable trays are typically made from galvanized steel, stainless steel, aluminum, or FRP (Fiberglass Reinforced Plastic) for durability, corrosion resistance, and long service life.
How do I choose the right cable tray size?
Choose size based on cable load, voltage classification, routing layout, and future expansion. A qualified electrical designer can determine the optimal width and depth.
Can cable trays support heavy electrical cables?
Yes. Depending on design and material, cable trays can support heavy power, control, and communication cables safely when properly installed.
How are cable trays installed?
Cable trays are mounted using brackets, clamps, or hanger systems on walls, ceilings, or under floors — following safety and electrical standards.
Do cable trays comply with electrical safety standards?
Yes. Quality cable trays from CFAU are manufactured to meet relevant electrical and industrial safety standards for dependable performance.
Can cable trays be customized?
Yes. Cable trays can be custom-fabricated in various sizes, materials, and finishes based on project requirements.
