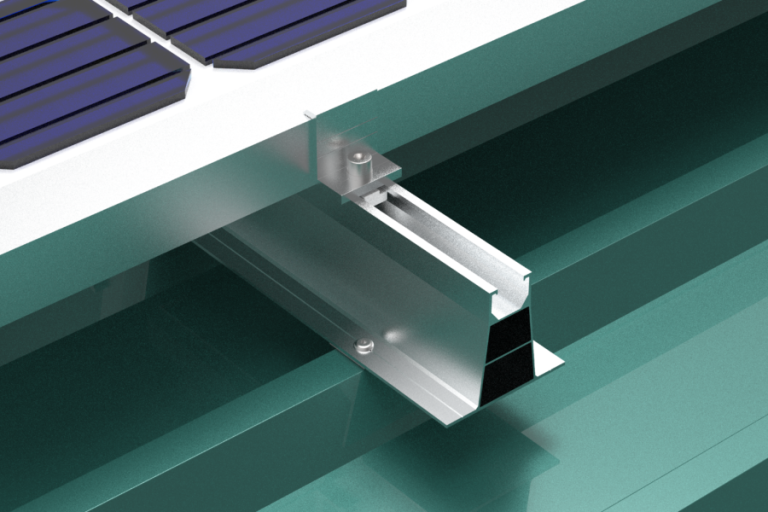

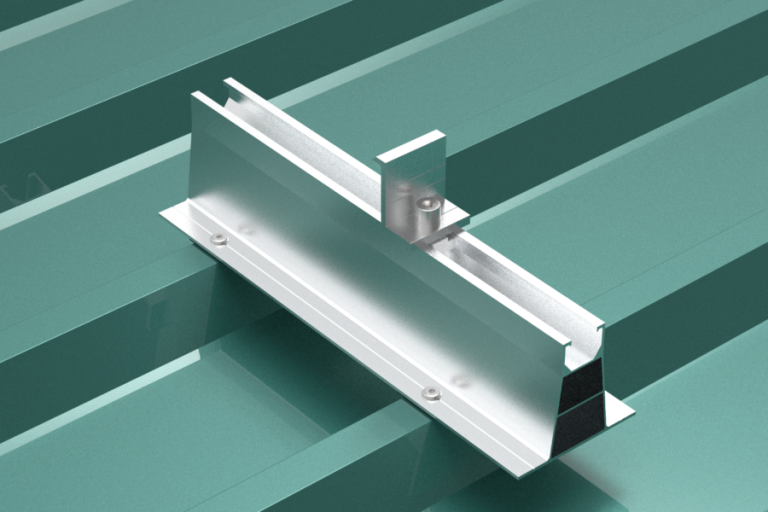

Monorail System
Discover The Convenience Of Solar Mounting With Our Range Of Mono Rail Solutions. Mono Rails Are The Most Preferred System For Trapezoidal And Corrugated Sheet Metal, Owing To Their Hassle-free Installation Process Without The Need For Time-consuming Fixing In The Roof Substructure. Our Range Can Comfortably Be Installed On Pitched Roofs Ranging From 5 To 75°. Rails Are Available In Customized Lengths To Accommodate Various Load And Insulation Requirements.
Highlights:
- Optimum Load Distribution On Trapezoidal Sheet
- Fewer Components Quick & Easy Installation
- Compatible With All Pv Module
- Efficient Space Utilization
General Guidelines:
- Suitable For Sheet Thickness > 0.4mm (Steel) 0.5mm (Aluminium)
- Suitable Crest Length 22mm < 300mm (Customizable)
- Flush Area Surrounding The Bore Hole: > 20 Mm
- Use EPDM for Leakage & Electrostatic Prevention
Mono Rail Dimensions:
Height: 30, 70 & 100 mm
Length: Customizable
Raw Material Used:
Aluminium 6063-T6
SS 304
Available in Anodized/Non-Anodized finishes

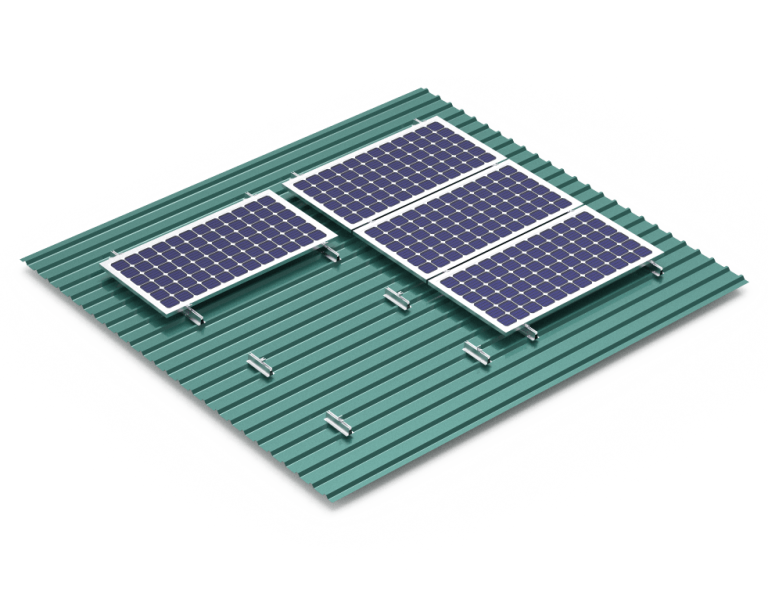

Monorail Solar Mounting System
What is a Monorail Solar Mounting System?
A Monorail Solar Mounting System is a lightweight, single-rail structure designed to securely mount solar panels on trapezoidal and corrugated metal roofs. It simplifies installation and provides strong load distribution without extensive roof substructure fixing.
Where can the Monorail System be installed?
The system is ideal for pitched roofs with angles from 5° to 75°, especially on industrial and commercial buildings with metal sheet roofing.
Is the Monorail System compatible with all solar modules?
Yes, our Monorail System is compatible with all standard PV solar modules, making it a flexible solution for various solar installations.
What materials are used in the Monorail Solar Mounting Structure?
The monorail is made from high-grade Aluminium 6063-T6 and SS 304 components, available in anodized or non-anodized finishes for enhanced durability and corrosion resistance.
How does the Monorail System benefit solar rooftop projects?
This system offers fewer components for quicker installation, effective load distribution, and efficient space utilization, helping reduce installation time and labor costs.
Can the Monorail System be customized?
Yes, monorails are custom-length adjustable to match specific roof crest widths and load requirements, making them suitable for a variety of project sizes.
What roof thickness is suitable for a Monorail system?
The system is generally suitable for steel sheet thickness above 0.4 mm and aluminium sheet thickness above 0.5 mm for reliable mounting.
Do I need special accessories like EPDM for installation?
Yes. Use of EPDM tape or seals around bore holes is recommended to prevent leakage and provide electrostatic protection during installation.
How long does it take to install a Monorail Solar Mounting system?
Installation is typically faster and simpler than traditional rail systems due to fewer components and straightforward design, reducing overall project timelines.
Is the Monorail System suitable for large-scale commercial solar projects?
Absolutely — its lightweight, cost-effective design and compatibility with large PV arrays make it ideal for industrial and utility-scale installations.
